Order Ticket

The Order Ticket (also known as Order Panel) is a dialog that allows users to place orders. Users can open this dialog in several ways:

  • By clicking the Trade button in the Account Manager.
  • By clicking the Plus button on the Price Scale.
  • By clicking the Buy Market and Sell Market buttons in the Legend.
  • By right-clicking the chart and selecting Trade → Create new order… in the context menu.

The Order Ticket is enabled by default, but you can disable it using the order_panel featureset.

Order Ticket

Configure order types​

The library supports four order types: limit, market, stop, and stop-limit. By default, users can select market, limit, and stop orders in the Order Ticket. But you can disable support for these order types via the supportMarketOrders, supportLimitOrders, and supportStopOrders flags, respectively.

You can also enable a stop-limit order type by setting supportStopLimitOrders to true. Refer to the Trading features configuration section for more information on setting configuration flags.

Change text for quantity units​

To customize the text displaying quantity units in the Order Ticket, use the units field within the InstrumentInfo object. You should return this object when the library calls the symbolInfo method.

Add custom fields​

If you want to add custom fields to the Order Ticket dialog, implement the getOrderDialogOptions method within your Broker API implementation. The method should return the OrderDialogOptions object. This object should contain the customFields property of the TradingDialogCustomField type. Note that the available custom field types are limited to combobox and checkbox.

Similarly, you can add custom fields to the Positions dialog by implementing the getPositionDialogOptions method.

info

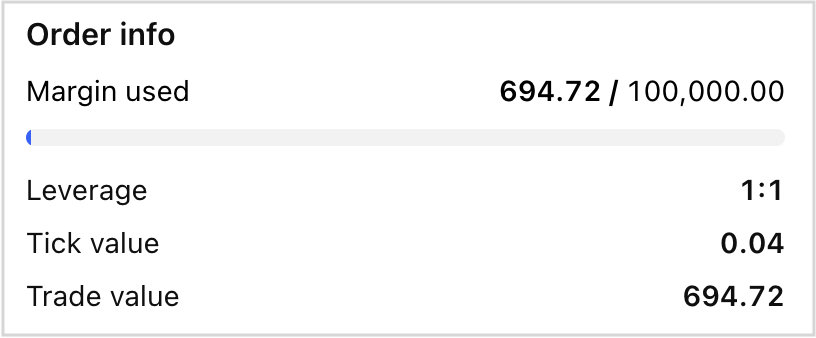

The library does not support adding custom fields to the Order info section of the Order Ticket. The information displayed there, such as pip value, is derived from the InstrumentInfo interface when certain broker configuration flags are enabled. Consider providing additional details in the order preview dialog.

Enable order preview​

You can show users additional order details before modifying or placing orders. For example, you can display the estimated order cost, commission, expiry date, and any warning or error messages as a part of the order preview dialog. In these messages, you can provide links to external URLs, such as specific T&Cs. Note that users can still clear the Show order confirmations checkbox in the ellipsis menu, meaning that the order preview dialog will not appear.

To enable order preview, follow the steps below:

  1. Set the following flags to true:

    Refer to the Trading features configuration section for more information on setting configuration flags.

  2. Implement the previewOrder method within your Broker API implementation. When users click Buy order or Modify order in the Order Ticket, the library calls previewOrder. This method returns the OrderPreviewResult object with the necessary information that is displayed in the order preview dialog. Within the object, you can:

    • Set a unique confirmation ID via confirmId. Note that it should be passed as a parameter to modifyOrder or placeOrder.
    • Customize extra fields using sections.
    • Set up text for warnings and errors using the warnings and errors properties. The warnings and errors are displayed below the order details in colored boxes.
    caution

    You will get the Order preview is not supported issue in the console if supportPlaceOrderPreview and supportModifyOrderPreview are enabled, but previewOrder is not implemented.

  3. Implement the modifyOrder and placeOrder methods. The library calls them right after users click Send Order in the order preview dialog:

    • modifyOrder is called when users want to modify existing orders.
    • placeOrder is called when users want to place new orders.

You can check the implementation of the order preview dialog in the CodePen below.

Enable bracket controls​

You can display controls for adding bracket orders in the Order Ticket dialog. Bracket orders allow users to protect their positions. To add controls, enable the supportOrderBrackets flag.

You can also disable bracket controls only for market orders by setting the supportMarketBrackets flag to false.

Manage ellipsis menu​

Users can access additional Order Ticket settings in the ellipsis menu. You can also programmatically get and set values for these settings.

Default settings​

By default, and without specifying any configuration flags, the Order Ticket has the following settings shown in the ellipsis menu:

  • Show Order Price in Ticks
  • Show Quantity in Money Risk
  • Show Quantity in % Risk
Default settings in the ellipsis menu of the Order Ticket

Brackets settings​

If you set the supportOrderBrackets, supportMarketBrackets, or supportPositionBrackets flags to true, the Show TP/SL inputs in Money and Show TP/SL inputs in % settings will appear in the ellipsis menu.

Bracket settings in the ellipsis menu of the Order Ticket
info

Note that these settings will not have any impact when used in crypto brackets. Selecting and clearing these checkboxes will not be visually reflected.

Order confirmations​

tip

The supportPlaceOrderPreview and supportModifyOrderPreview flags enable order preview. It allows showing users additional order details before modifying or placing orders. Refer to Enable order preview for more information.

If you set the supportPlaceOrderPreview or supportModifyOrderPreview flags to true, the Show order confirmations will appear in the ellipsis menu.

Order Ticket Settings Order Confirmations

Get and set settings​

You can programmatically access and change settings, available in the ellipsis menu. To do this, use the getOrderTicketSetting and setOrderTicketSetting methods of the Trading Host. You can find the full list of properties in the OrderTicketSettings interface.

Enable crypto brackets settings​

The supportCryptoBrackets flag enables crypto brackets and displays additional settings within the Take Profit and Stop Loss brackets: Money and %.

Order Ticket settings: crypto bracket in currency

You can also programmatically get or set these settings using the showCryptoBracketsInCurrency and showCryptoBracketsInPercent properties. Note that these settings are not shown in the ellipsis menu.

Enable Time in force menu​

You can enable the Time in force drop-down menu that allows users to specify order duration. Duration determines how long the order remains active.

The durations drop-down menu in the Order Ticket

To enable the menu, provide durations within the SingleBrokerMetaInfo object assigned to broker_config. The durations property is an array of OrderDurationMetaInfo objects that specify the order duration settings. For example, you can adjust a duration value or title that is displayed in the UI.

const datafeed = new Datafeeds.UDFCompatibleDatafeed("https://demo-feed-data.tradingview.com");
new TradingView.widget({
    container: "chartContainer",
    locale: "en",
    library_path: "charting_library/",
    datafeed: datafeed,
    symbol: "AAPL",
    interval: "1D",
    broker_factory: function(host) { return new Brokers.BrokerSample(host, datafeed); },
    broker_config: {
        configFlags: {
            // Configuration flags
        },
        durations: [
            { name: 'DAY', value: 'DAY' },  // Day orders
            { name: 'GTC', value: 'GTC' },  // Good-Til-Canceled orders
        ],
    },
})

Note that the duration options are displayed for limit, stop, and stop-limit order types by default. However, if you want to specify a different set of duration options for a particular type, you need to provide this information in the supportedOrderTypes array of the durations property.

Implement custom Order Ticket​

You can display your own Order Ticket instead of the built-in one. To do this, you should provide customUI within the SingleBrokerMetaInfo object assigned to broker_config. The values of customUI are functions that Trading Platform calls to show several dialogs, including the Order Ticket. Each function returns a Promise object that should be resolved when the operation is finished or canceled. Note that the returned Promise object should be resolved with either a true or false value.

const datafeed = new Datafeeds.UDFCompatibleDatafeed("https://demo-feed-data.tradingview.com");
new TradingView.widget({
    container: "chartContainer",
    locale: "en",
    library_path: "charting_library/",
    datafeed: datafeed,
    symbol: "AAPL",
    interval: "1D",
    broker_factory: function(host) { return new Brokers.BrokerSample(host, datafeed); },
    broker_config: {
        configFlags: {
            // Configuration flags
        },
        customUI: {
            showOrderDialog: (order, focus) => Promise<boolean>;
        },
    },
})
